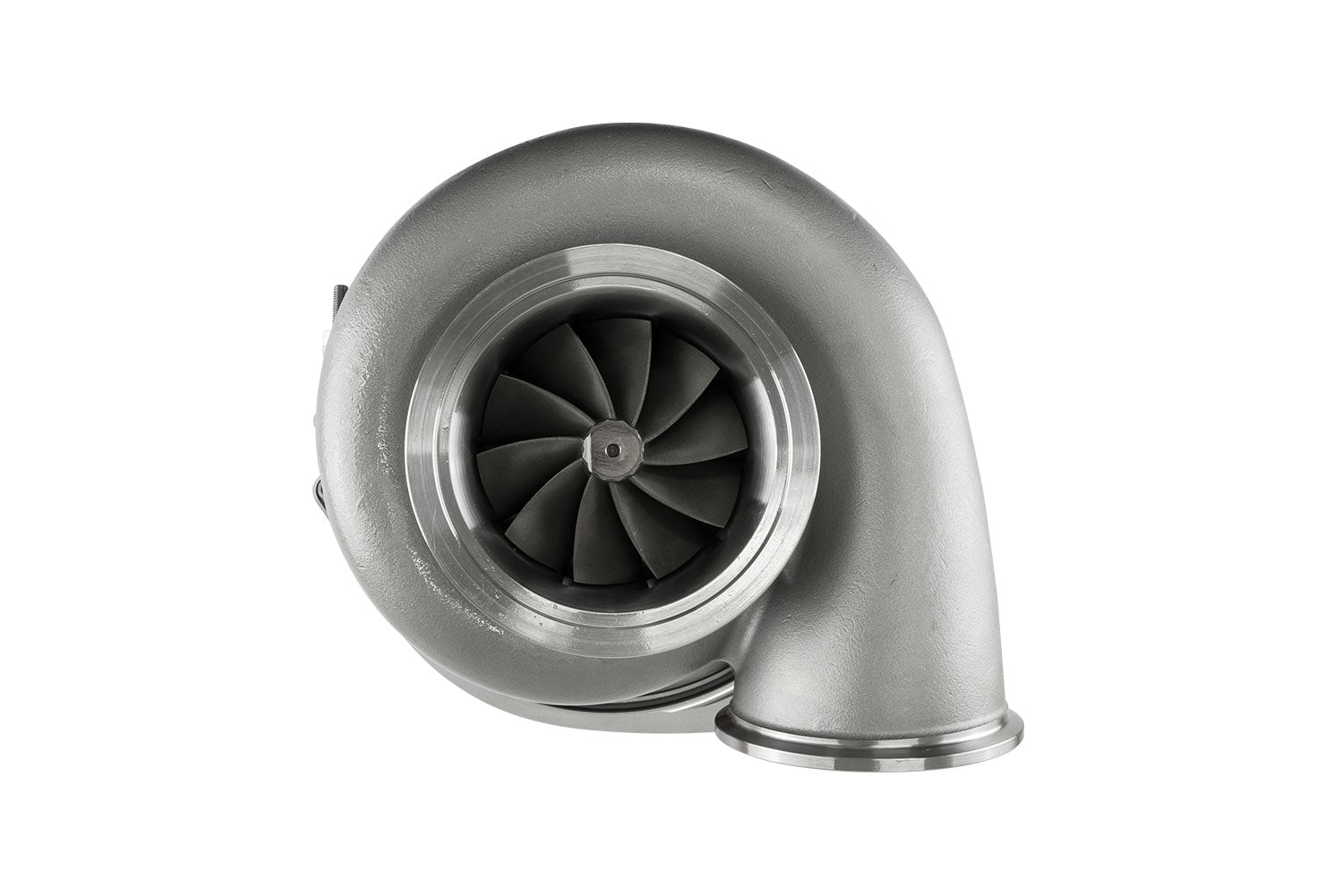

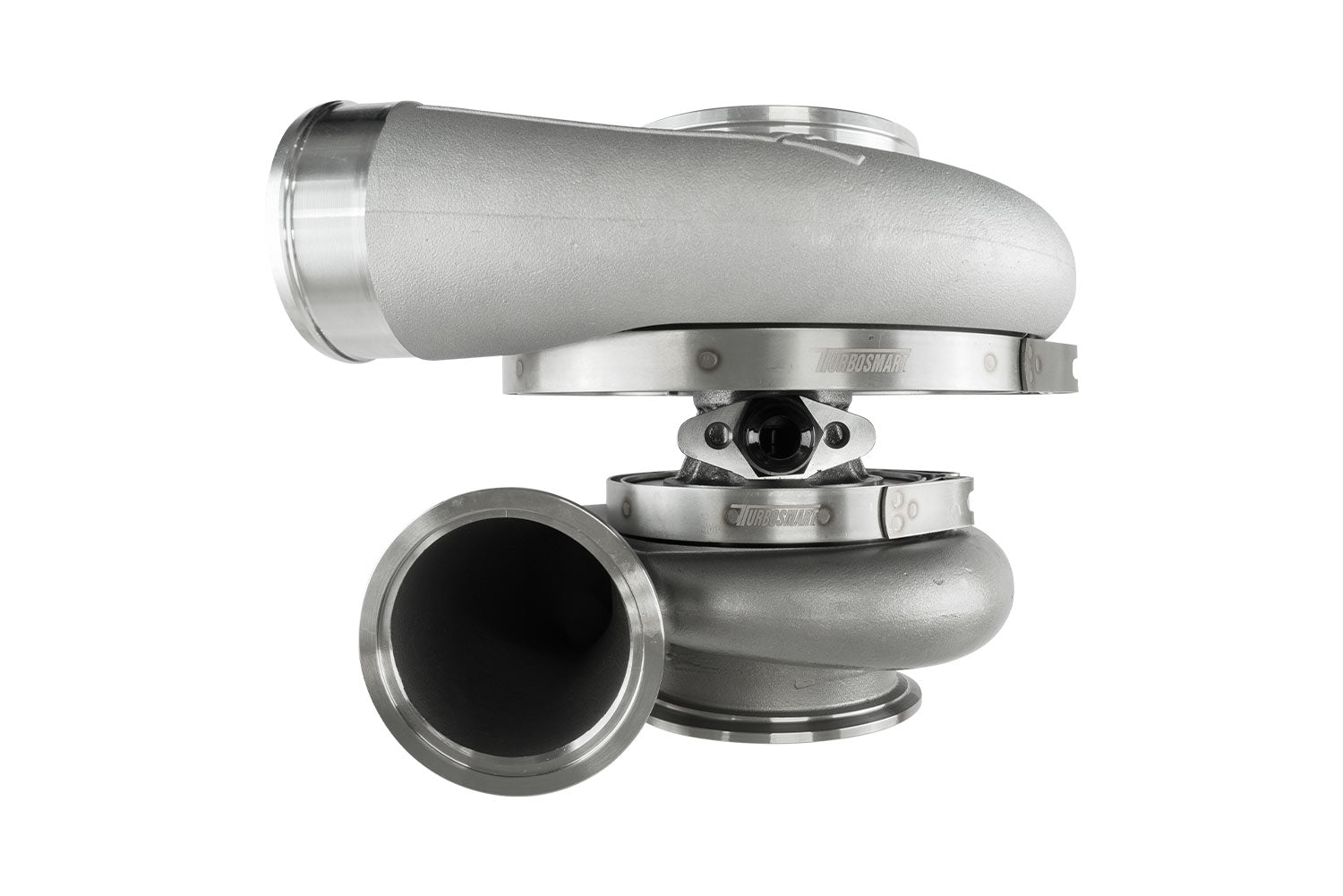

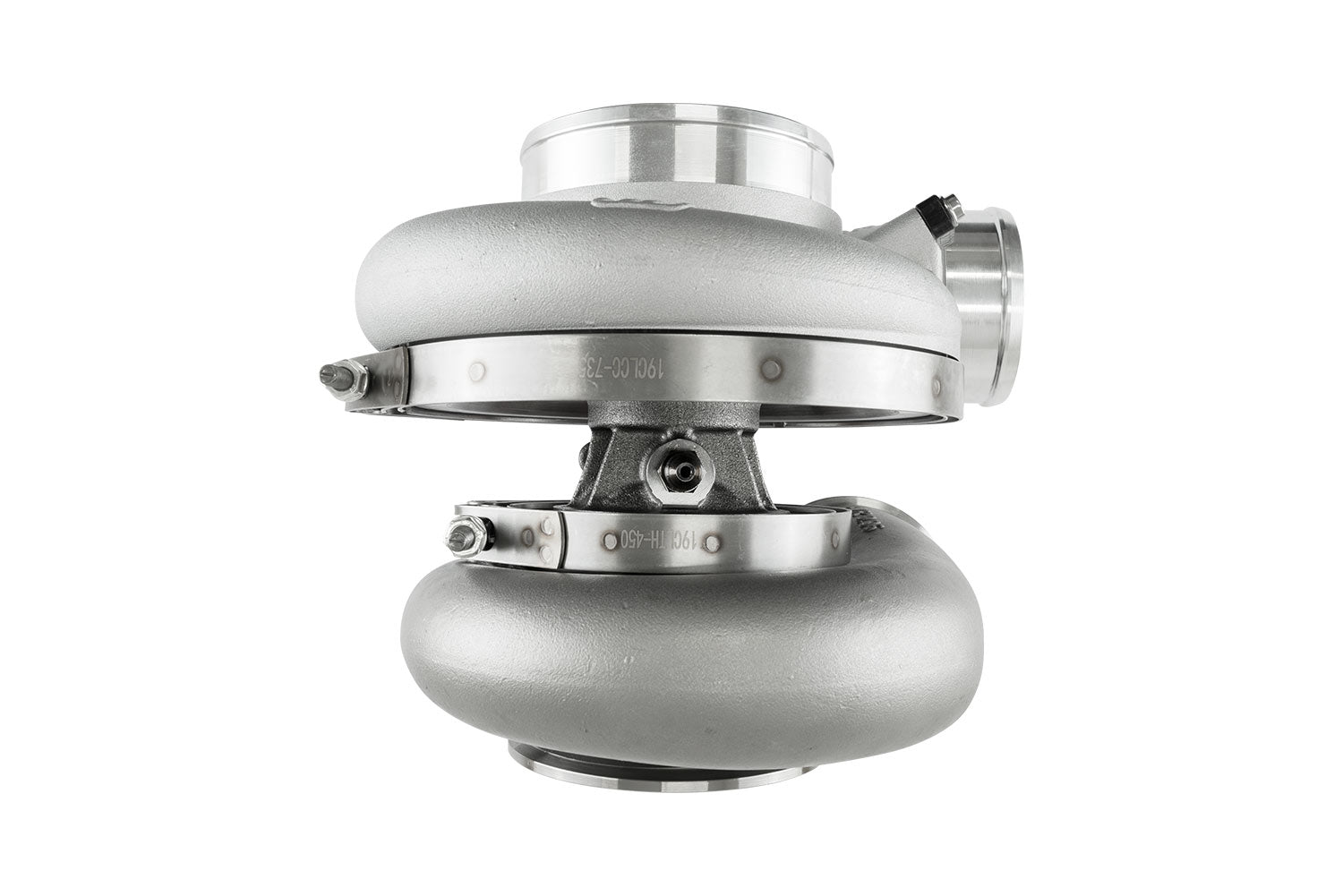

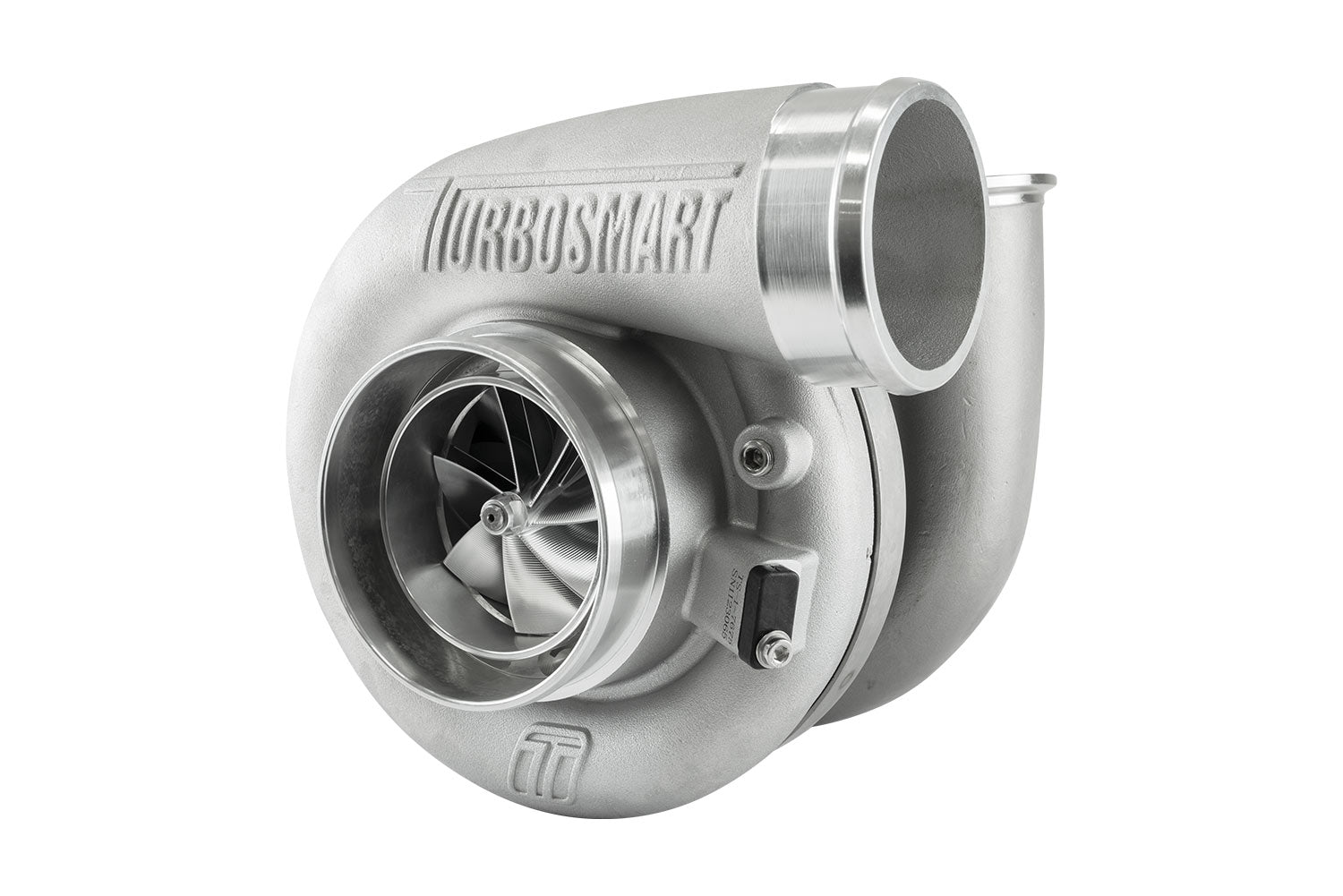

Turbosmart C-Frame 7675 (Oil Cooled) - Turbine Housing: V-Band 0.96 AR

Part Number: TS-1-7675C-VB096E

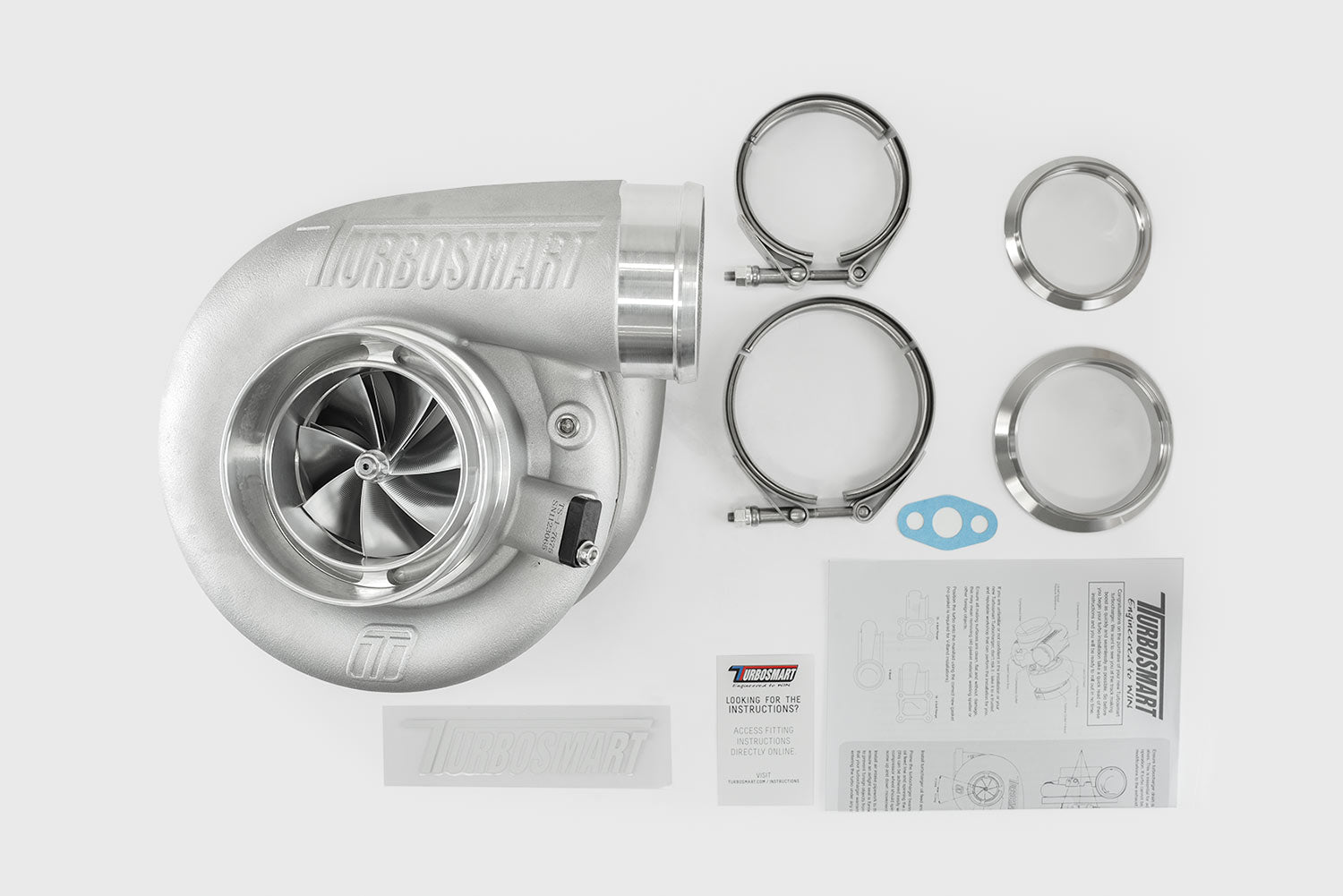

The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques. This is a true turn-key turbo meaning it will come with a turbine housing, weld flanges, clamps, oil fittings, and gaskets.

Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 76mm
Turbine Inlet: V-Band (3.00″)
Turbine Exducer: 75mm
Turbine AR: 0.96
Turbine Outlet: V-Band (3.50″)
Weight: 9.63kg / 20.23lbs
Horsepower Rating: 1200-1350HP

Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminium compressor covers
CFD driven designed housings for optimal A/R’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
