Turbosmart B-Frame 6466 (Oil Cooled) - Turbine Housing: V-Band 0.82 AR

Part Number: TS-1-6466B-VB082E

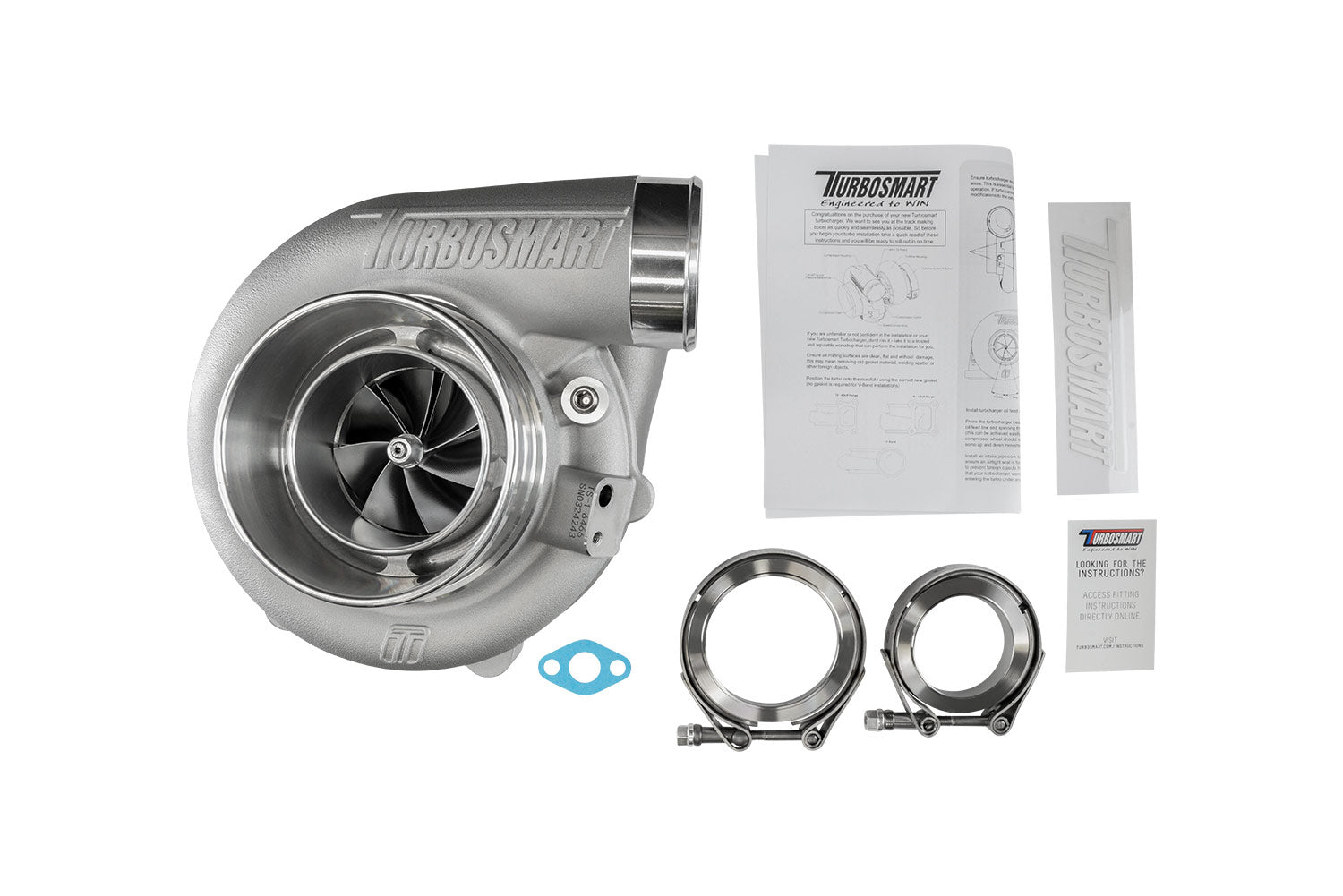

The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques. This is a true turn-key turbo meaning it will come with a turbine housing, weld flanges, clamps, oil fittings, and gaskets.


Specifications
Compressor Inlet: 4″ / 101.6mm
Compressor Inducer: 64mm
Turbine Inlet: V-Band (2.25″)
Turbine Exducer: 66mm
Turbine AR: 0.82
Turbine Outlet: V-Band (3.00″)
Weight: 6.06kg / 13.3lbs
Horsepower Rating: 750-930HP


Features
Unparalleled transient response
Aggressive aerodynamics with 7+7 splitter wheels
Lightweight 310s stainless steel investment cast turbine housings
Lightweight, Aluminum compressor covers
CFD driven designed housings for optimal AR’s and flow
T14 Inconel turbine wheel for extreme EGT’s
VSR speed balanced
Proprietary dual ceramic bearing system
Integrated Iron backplate on center housing
